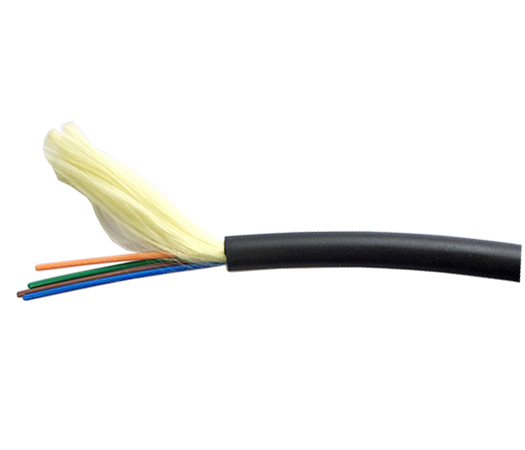

| Distribution Tight Buffer Tactical Cable | |||||||||
|
|||||||||
Complied with or Exceeds Standard
IEC 60793-2-10 type A1b, TIA/EIA-492AAAA-A IEC 60793-2-10 type A1a.1, TIA/EIA-492AAAB-A.
IEC 60793-2-10 type A1a.2, ISO/IEC 11801 OM-3, TIA/EIA-492AAAC IEEE 802.3z Gigabit Ethernet
IEC 60793-2-10 type A1a.3, ISO/IEC 11801 OM-4, TIA/EIA-492AAAD. IEEE 802.3ae 10 Gigabit Ethernet
IEC 60793-2-10 type Ala.4, ISO/IEC 11801 OM5, TIA/ElA-492AAAE. IEEE 802.3ba 40&100 Gigabit Ethernet
ITU-T Recommendation G.652.D/G.655/G.657.A1/G.657.A2/G.657.B2/G.657.B3
IEC 60793-2-50 type B1.3/B6.a1/B6.a2/B6.b2/ B6.b3 Optical Fiber Specification.
ANSI/TIA/EIA 568C.3 ROHS Compliant Directive 2011/65/EU(ROHS2.0)
The tactical cable combines robust characteristics of outdoor cable and flexibility of indoor cable. It provides unprecedented flexibility coupled with a high crush resistance. Ideal for use in repeated deployment/retrieval applications like military data communications, audio/video field pickup, outdoor news, sporting, oil exploration
Mechanical & Environmental Characteristics
Max. Tensile Load (Short Term) | 1200N | Max. Tensile Load (Long Term) | 600N |
Max. Crush Load (Short Term) | 2200N/100mm | Max. Crush Load (Long Term) | 1000N/100mm |
Bend Radius-Dynamic (mm) | 20D | Bend Radius-Static (mm) | 10D |
UL Fire Rated | OFNR | Tight Buffer Jacket Material | LSZH or PVC |
Outer Diameter (mm) | 5.0mm (4 F), 5.5mm (6 F), 6.2mm (8 F), 7.0mm (12 F) | ||
Outer Jacket Material | Standard: PU Optional: PE, LSZH or other | ||
Operating Temperature | -40°C to +70°C | Storage Temperature | -40°C to +70°C |
Note: “D” is Cable Outer Diameter.
Ordering Information
Part Number： OC-XX-A(B)CDCL
Ordering Guide
XX | A | B | C | D | CL |
Cable Type Code | Jacket | Fiber/Per Loose Tube or Fiber/Per Sub Unit | Fiber Count | Fiber Type | Jacket Color(CL) |
GJYFJH-I, GJYFJH-Ⅱ | 1=PVC 2=LSZH 3=PE 4=PU | 2=2 Fibers/Loose Tube 12=12 Fibers/Loose Tube …… 2=2 Fibers/Sub Unit 12=12 Fibers/Sub Unit | No. Of Fiber 004F, 048F | OM1=62.5/125 OM1, OM2=50/125 OM2 OM3=50/125 OM3, OM4=50/125 OM4 OM5=50/125 OM5, G652D=9/125 G652D G655=9/125 G655, G657A1=9/125 G657A1 G657A2=9/125 G657A2, G657B3=9/125 G657B3 | As noted in Color code chart |
Color Code
Ordering Sample
Part Number | Description |
OC-GYPFJU-44G652DBK | 4 Cores Singlemode G652D GYPFJU Fiber Optic Cable, PU Jacket, Black Color. |
|
