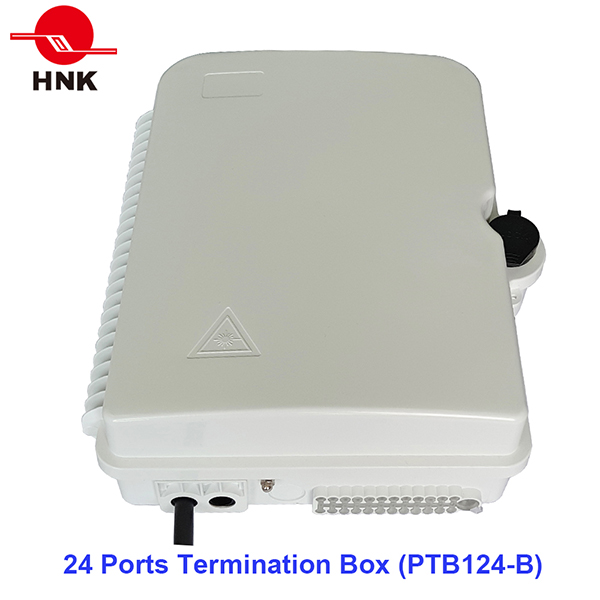

| 24 Ports B Type Termination Box | |||||||||
|
|||||||||
Standards Compliance
. TIA/EIA 568.C, Optical Fiber Cabling Components Standard
. IEC61754, Fiber optic connector interfaces Standard
. ANSI/TIA/EIA-606-A (Administration Standard for Telecommunications Infrastructure. )
. GR-449-CORE (Generic Requirements and Design Consideration for Fiber Distributing Frames. )
. UL 94 (Tests for Flammability of Plastic Material for Parts in Devices and Appliances. )
. RoHS (Directive on Restriction of Hazardous Substances. )
Product Features
. Wall mounted for indoor or out door, white or gray color,
graceful style and good adaptability to environment.
. Made of high quality ABS+PC, anti-collision, flame retardant, resistance to impact.
. Total enclosed structure, Anti-UV, wet-proof, water-proof, dust-proof, anti-aging.
. Fit for 1x8, 2x8, 1x16 and 2x16 Micro or boxed PLC splitter assembly.

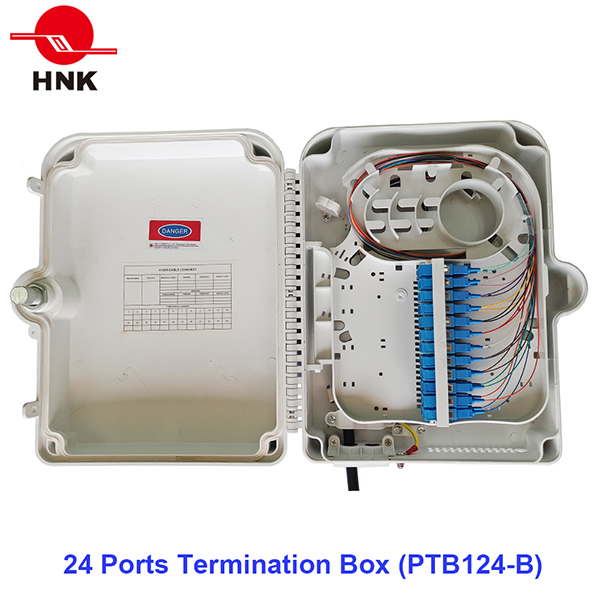

. Adapter panel used for mounting up to 24 SC simplex adapters.
. It has 2 cable input ports, 24 drop cable output ports and 1 earth bar part on the bottom of box.
. Openable input rubber ports structure, permits loop-through Max Diameter 13mm cable.
. 1 additional cable inlets, max diameter 20mm.
. The base and cover of the box adopts self-clip and "key lock" method,
It is a safe structure that is easy to open and close.

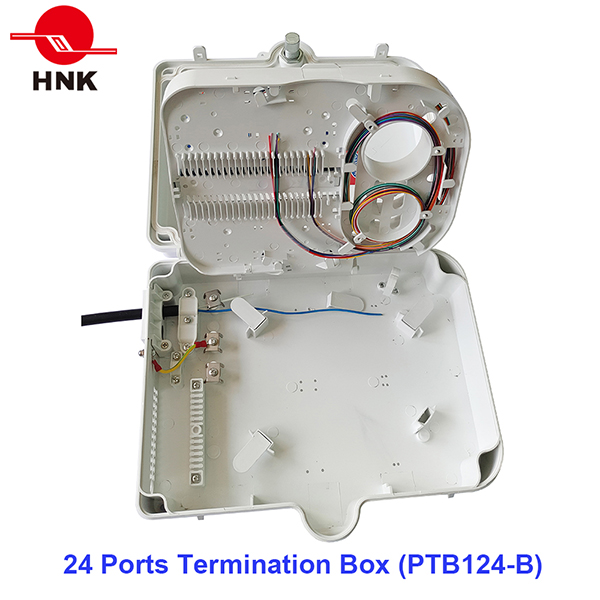

. Reliable input cable, strength member and feeder/drop cable fastening system.

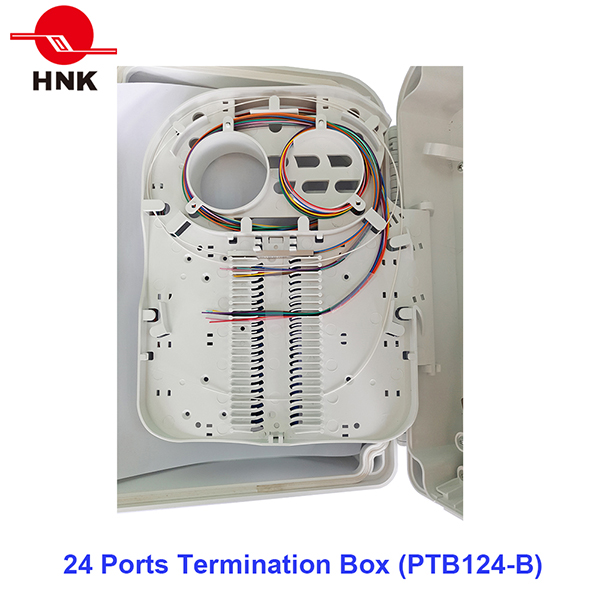

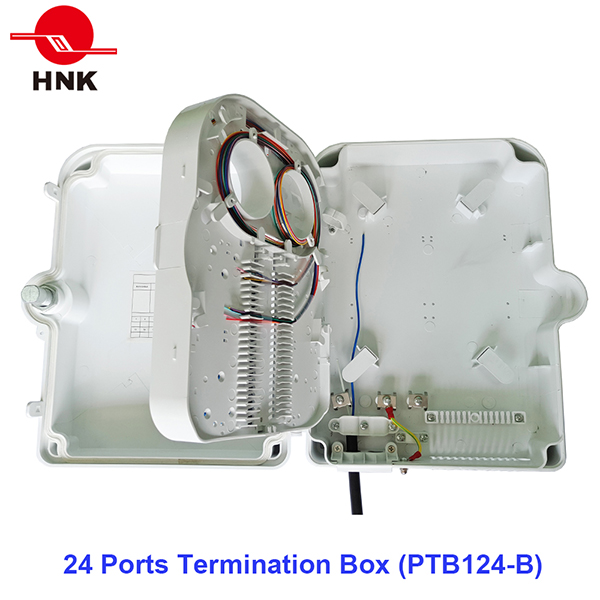

. Splice distribution tray receive flip type design simple to use, melting with complete separation
of fine points fiber layout more reasonable.
. Input cable, pigtails, drop cables are running through own path without disturbing each other, easy maintenance.
Specifications
Working Temperature | -25～+60°C | Storage Temperature. | -40～+70°C |
Humidity | 93%(+30°C) | Air Pressure | 70KPa～106KPa |
Size (H×W×D) mm | 315x280x105 | Weight (kg) | 1.5 |
Color | White/Gray | Material | ABS+PC (ROHS standard) |
Capacity (Cores) | 24(SC simplex),48(LC duplex) | Splitter Type | Micro or boxed PLC splitter |
Adapter Ports | 24 | Connect Models | Fusion splicing, Mechanical Splicing |
Installation Models | wall or pole-mounted | Protective Level | IP65 |
Cable Input Ports | 2 | Input Cable Diameter | ≤Φ13mm |
Cable Output Ports | 24 | additional cable inlets | ≤Φ20mm
|
Working Environment | indoor and outdoor | Curvature Radius (mm) | ≥30 |
Ordering Information
Using the available configurations amend/create product codes using the formula below.
Part Number： XX-AA-BBC-(DCLEF)
Ordering Guide
XX | Termination box Type | PTB=Plastic Termination box, MTB=Metal Termination box |
AA | Product ID | please see the referrence below |
BB | Port Capacity | 01=1 Port, 04=4 Ports, 16=16 Ports |
C | Configuration | E=only Termination box, L=With Adapters, F=With Adapters and Pigtails |
D | Adapter Connector Type | FP,SP,SA,LP |
CL | Adapter Color(CL) | BL/Blue for Singlemode PC Standard, BG/Beige for Multimode Standard, AQ/Aqua for OM3 Standard, GR/Green for Singlemode APC Standard and PU/Purple for OM4 Standard (Metal Structure Unsuited) |
E | Fiber Type | OM1=62.5/125 OM1, OM2=50/125 OM2, OM3=50/125 OM3, OM4=50/125 OM4, G652D=9/125 G652D, G657A=9/125 G657A |
F | Fiber Length | 05=0.5M, 10=1M |
Adapter Connector Type Code
Code | Connector | Code | Connector | Code | Connector | Code | Connector |
FP | FC/PC | FA | FC/APC | LP | LC/PC | LA | LC/APC |
SP | SC/PC | SA | SC/APC | TP | ST/PC | TA | ST/APC |
Ordering Sample
Part Number | Description |
PTB124-B-24E | 24 ports PTB124-B type termination box, without adapter and pigtail. |
PTB124-B-24FSPBLG652D10 | 24 ports PTB124-B type termination box with simplex SC/PC adapters and 1M singlemode SC/PC pigtails. |
|
