  Round Cable Stripper
Model:MK-02
MK02 stripper tool is used for slitting the PE, PVC, or rubber insulation on electrical cables of between 4.5mm and 28.5mm diameter with an insulation depth of up to 3mm max, providing for efficient insulation removal. A small rotating blade accurately splits the circumference of the jacket, then by flicking a switch, the same blade will rotate 90° and is used to split the jacket down one side for easy removal.

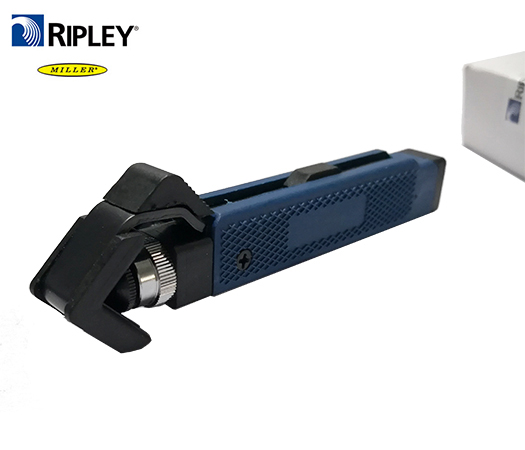

  • Round Cable Stripper-1
    Round Cable Stripp

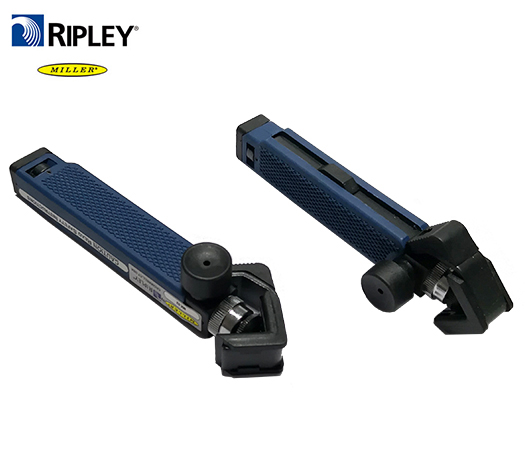

  • Round Cable Stripper-2
    Round Cable Stripp

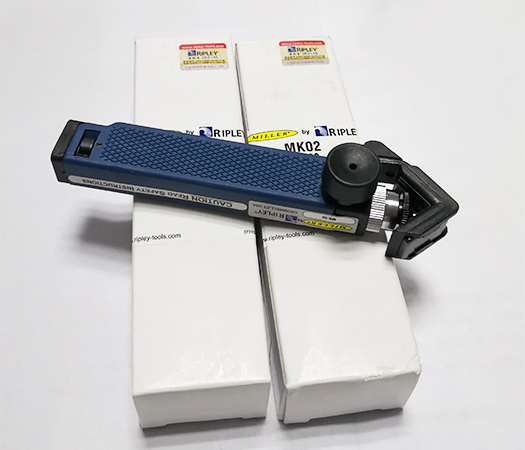

  • Round Cable Stripper-3
    Round Cable Stripp

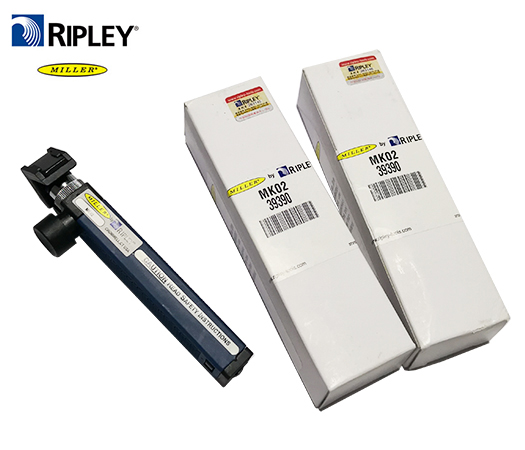

  • Round Cable Stripper-4
    Round Cable Stripp


2011/65/EU(ROHS2.0)

Features

.    Cable stripper for outer jackets & insulations from 0.18 to 1.12 in. (4.5 to 28.5 mm) O.D.

.    Stripping action is both circumferential, then longitudinal for removal of insulation section at the end or mid span of wires.

.    Adjustable depth up to 0.12 in. (3 mm) cutting depth.

.    Spherical blade for softer insulation is standard; chisel point blade for harder coverings is optional.

.    MK02 has handy spring-loaded hook ripping blade at base of tool to facilitate insulation removal.

.    Solid construction for rugged applications.


Specification

Brand

Original Ripley   Miller

Model   NO.

MK-02

Dimensions

135   x 40 x 15 mm

Weight

120   g

Stripping   Capacity

4.5   to 28.5 mm

Origin

China


Ordering Information

Part   Number

Description

MK-02

Original Ripley Miller MK-02 Round Cable Stripper.
