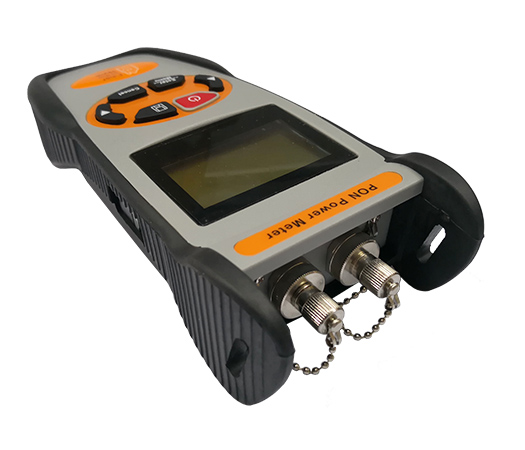

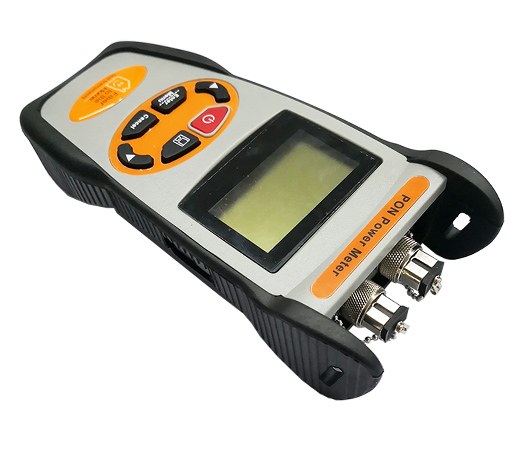

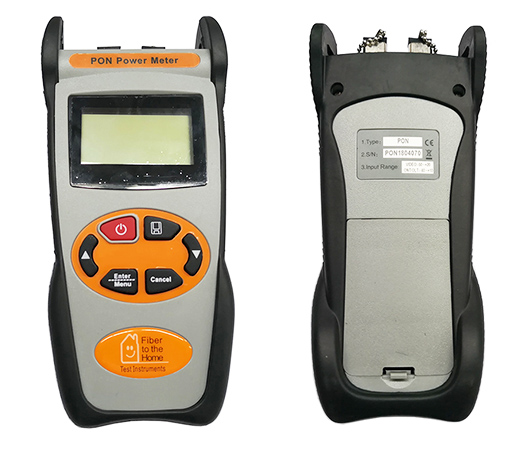

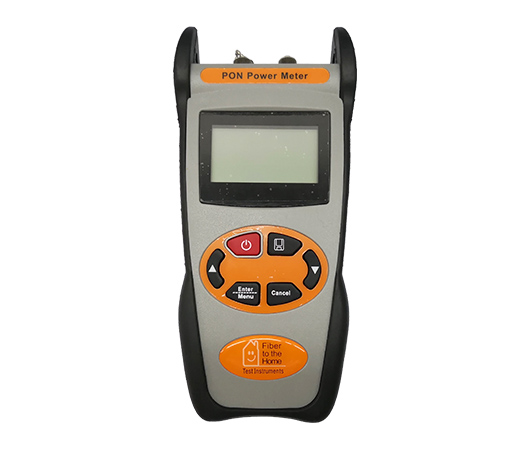

| PON Optical Power Meter | |||||||||
|
|||||||||
2011/65/EU(ROHS2.0)
Features
. Providing simultaneous measurement at EPON/GPON/GEPON for
all three wavelengths on the fiber (1490nm, 1550nm,1310nm).
. Used in Burst mode measurement of 1310nm upstream.
. Convenience for threshold setting, which can set the threshold on the tester.
. USB communication port enables data transfer to a PC.
. Offers up to 10 different threshold sets in total.
. User self-calibration can be retrieved in computer through the software.
. 10 minutes Auto-off function can be activated or deactivated with keypad operation.
Specifications
Type | PON106 | ||
Model | 1310nm | 1490nm | 1550nm |
Pass Zone(nm) | 1260～1360 | 1470～1505 | 1535～1570 |
Isolation (dB) | >40@1490 | >30@1310 | >40@1310 |
Isolation(dB) | >40@1550 | >40@1559 | >40@1490 |
Measurement Range(dBm) | -40～+10 | -40～+10 | -40～+20 |
Measurement Accuracy | |||
Connatural uncertainty(dB) | ±0.5 | ||
Linearity(dB) | ±0.1 | ||
Passing through insertion Loss(dB) | <1.5 | ||
General Information | |||
Detector Type | InGaAs | ||
Optical Connector | FC/SC Interchangeable | ||
Fiber Type | 9/125um | ||
Display | LCD:128*64 | ||
Measurement Unit | dB/dBm/xW | ||
Resolution (dB) | 0.01 | ||
Power Supply | 3 AA1.5V battery | ||
Operation Temperature(℃) | -10～60 | ||
Storage temperature(℃) | -25～70 | ||
Dimension(mm) | 200 X90 X50 | ||
Weight(g) | 285 | ||
Ordering Information
Part Number | Description |
PON106 | PON106 Type PON Optical Power Meter. |
|
