Standards Compliance
. TIA/EIA 568.C, Optical Fiber Cabling Components Standard
. IEC61754, Fiber optic connector interfaces Standard
. ANSI/TIA/EIA-606-A (Administration Standard for Telecommunications Infrastructure. )
. GR-449-CORE (Generic Requirements and Design Consideration for Fiber Distributing Frames. )
. UL 94 (Tests for Flammability of Plastic Material for Parts in Devices and Appliances. )
. RoHS (Directive on Restriction of Hazardous Substances. )

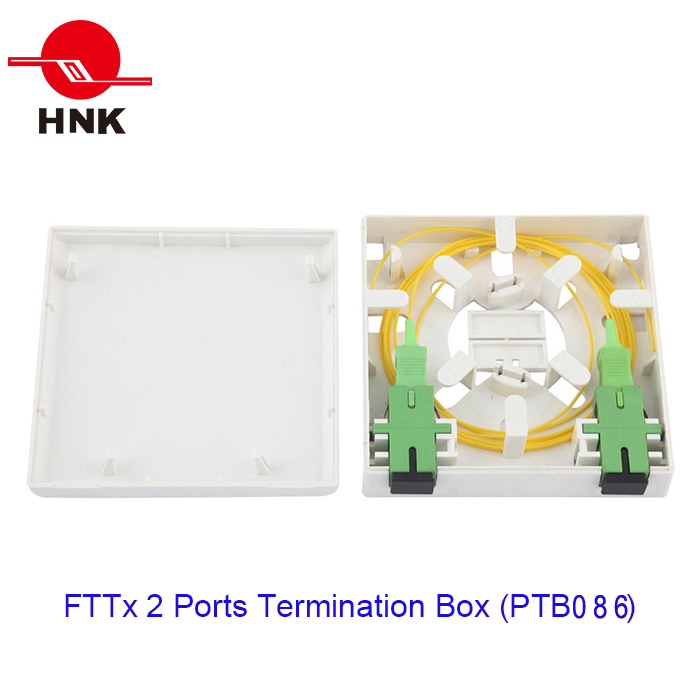

Product Features

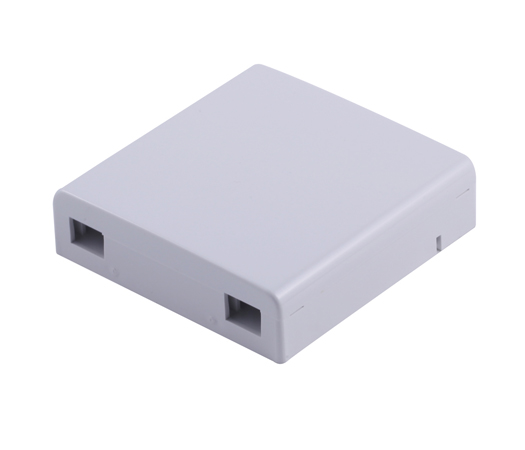

. Size: 86mm×86mm×24mm, compatible with power faceplate, easy installation. With dustproof shutter doors.
. Made of high quality ABS, anti-collision, flame retardant, resistance to impact。 All the materials complied with ROHS standard.
. Convenient press-pull button lock design greatly reduced installation strength. With reasonable interior space design, allowed
redundant fiber storage, With good fiber bending radius protection, and protection of input and output optical cable.
. Interface fit for a variety of adapters and connectors, Simplex FC, SC, ST or duplex LC.
. Fit for all kinds of fiber optic cable installation operation, fusion splicing, mechanical splicing and FMC are available,
and provides fixed and protection for optical fiber connection.
. Remarkable laser warning identification.
Ordering Information
Using the available configurations amend/create product codes using the formula below.
Part Number： XX-AA-BBC(DE)(FGH)
Ordering Guide
| XX | Termination box Type | PTB=Plastic Termination box, MTB=Metal Termination box |
| AA | Product ID | PTB086 |
| BB | Fiber Capacity | 01=1 Fiber, 02=2 Fibers, 04=4 Fibers, 16=16 Fibers |
| C | configuration | E=only Termination box, L=With Adaptor, F=With Adaptor and Pigtail |
| D | Adaptor Type | SP,LA,FP,TP. |
| E | Adaptor Mode | SM=Singlemode, MM=Multimode, OM3=Multimode 10G |
| F | Connector Type | FP,SP,SA,LP |
| G | Fiber Type | OM1=62.5/125 OM1, OM2=50/125 OM2, OM3=50/125 OM3,
OM4=50/125 OM4, G652D=9/125 G652D, G657A=9/125 G657A |
| H | Fiber Length | 05=0.5M, 10=1M |
Adaptor Type & Connector Type Code
| Code | Connector | Code | Connector | Code | Connector | Code | Connector |
| FP | FC/PC | FA | FC/APC | LP | LC/PC | LA | LC/APC |
| SP | SC/PC | SA | SC/APC | TP | ST/PC | TA | ST/APC |
| MU | MU | DN | DIN | MT | MTRJ | E2 | E2000 |
Ordering Sample
| Part Number | Description |
| PTB086-02E | 2 Fibers PTB086 Type Termination Box, without adaptor and pigtail. |
| PTB086-02LSPSM | 2 Fibers PTB086 Type Termination Box With Singlemode Simplex SC/PC Adaptor. |
| PTB086-02FSAG652D10 | 2 Fibers PTB086 Type Termination Box With Singlemode Simplex SC/APC Adaptor and 1M Singlemode SC/APC Pigtail. |
