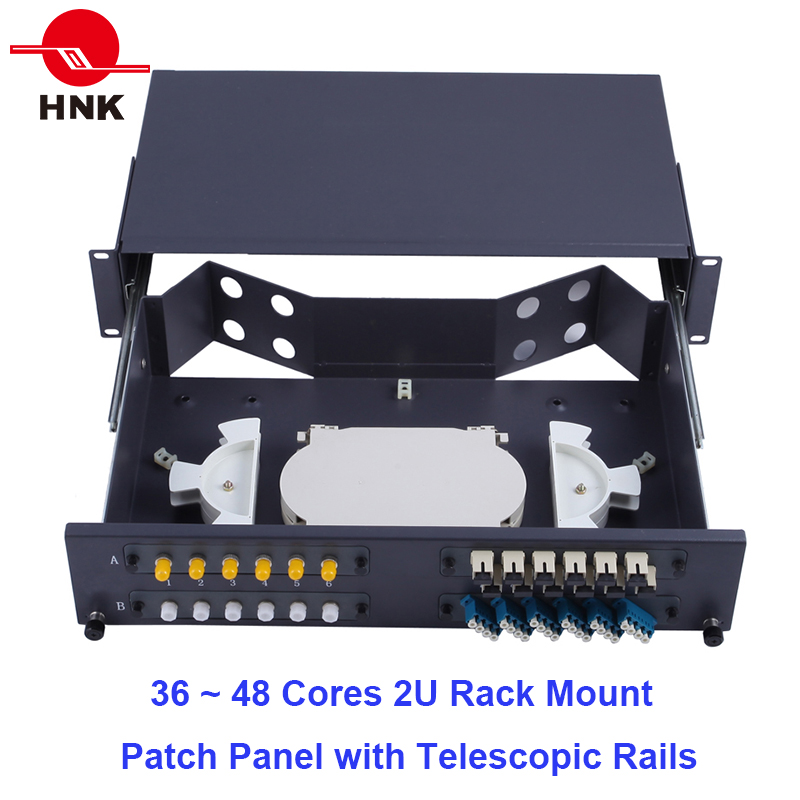

　 1U & 2U Rack Mount Patch Panel with Telescopic Rails
Model:RPP-AP
RPP-AP provides professional cable management and ease of fiber termination with a cost effective mechanical pull-out mechanism. RPP-AP Panels are available with various designs. The 19” Rack Mountable Panels come in 1U or 2U in height. The 1U Rack Mount Panel could accommodate 2 long adapter plates and terminate a range of 12 to 24 fiber connection. The high density 2U Rack Mount Panel could accommodate 4 long adapter plates and terminate a range of 24 to 48 fiber connection.

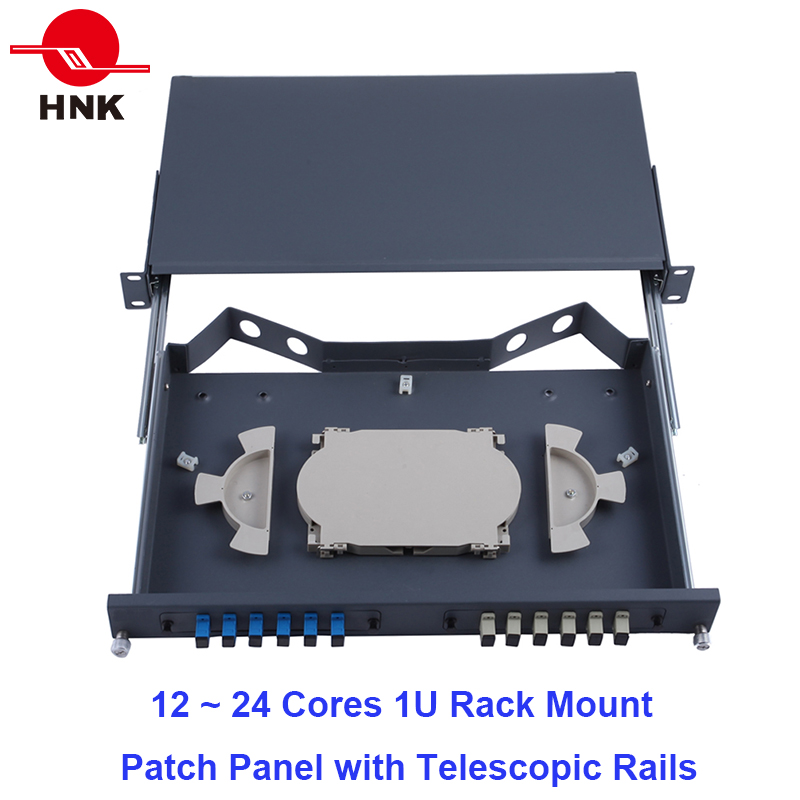

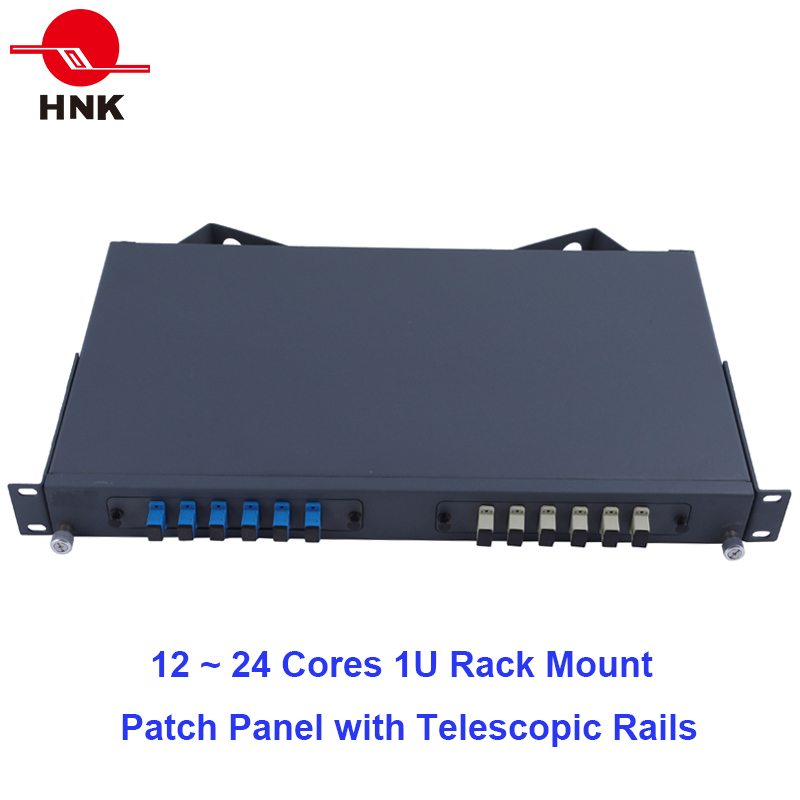

  • RPP-AP-1U
    RPP-AP-1U
  • RPP-AP-1U
    RPP-AP-1U

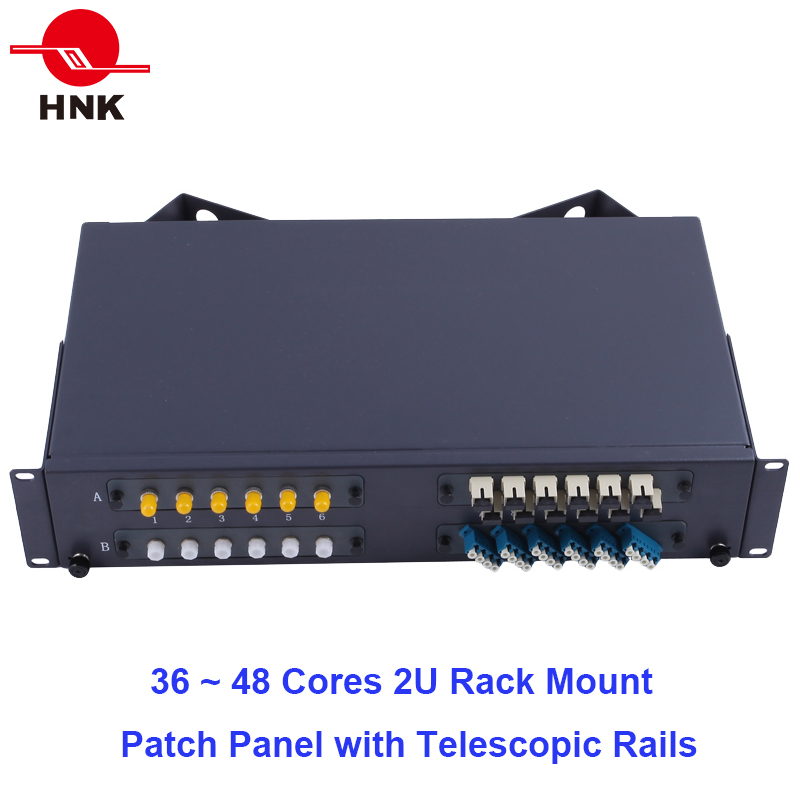

  • RPP-AP-2U
    RPP-AP-2U
  • RPP-AP-2U
    RPP-AP-2U
  • Blank Plate

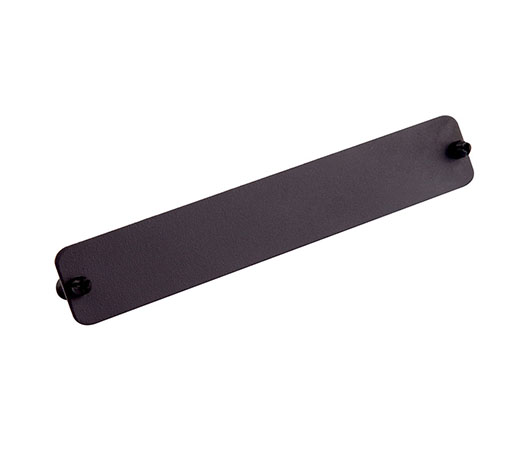

    Blank Plate
  • SC-12-SX

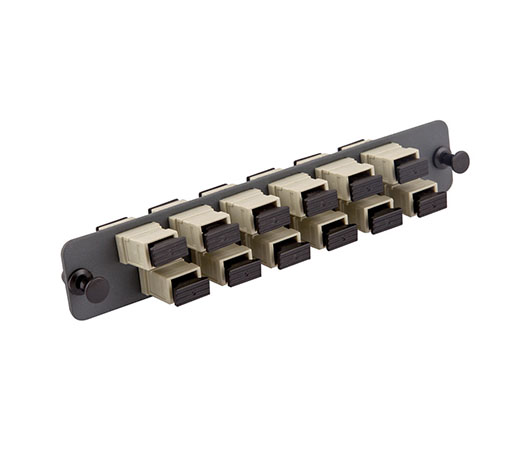

    SC-12-SX

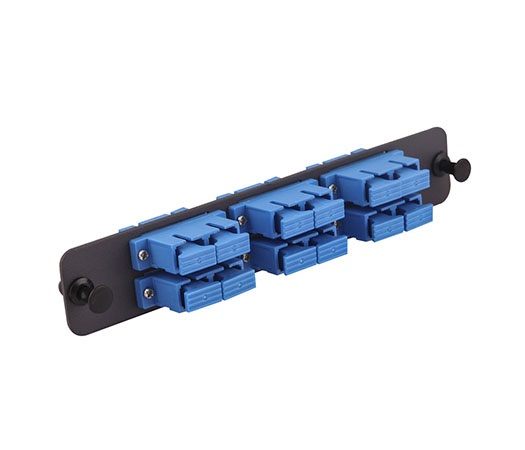

  • SC-06-DX
    SC-06-DX

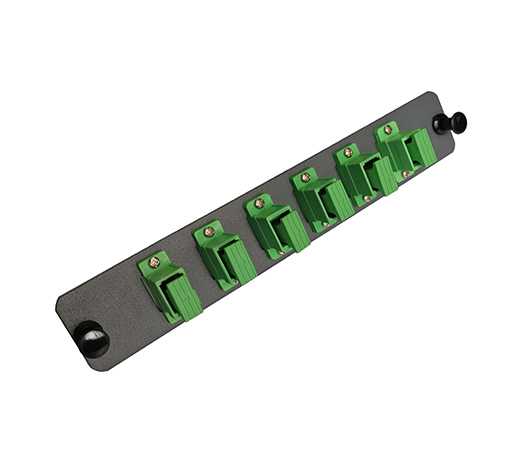

  • SC-06-SX
    SC-06-SX

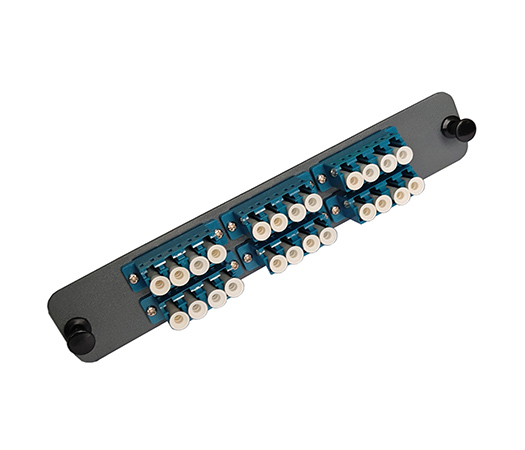

  • LC-06-DX

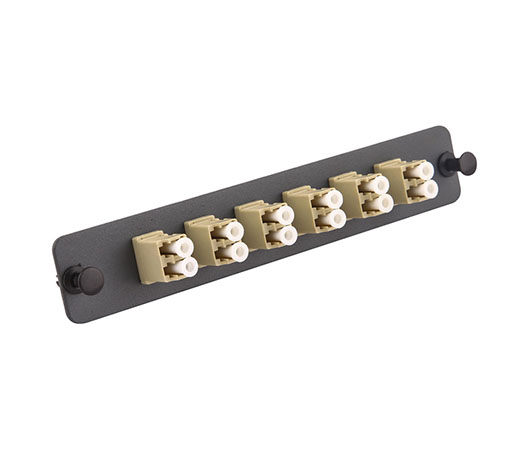

    LC-06-DX
  • LC-06-QD
    LC-06-QD

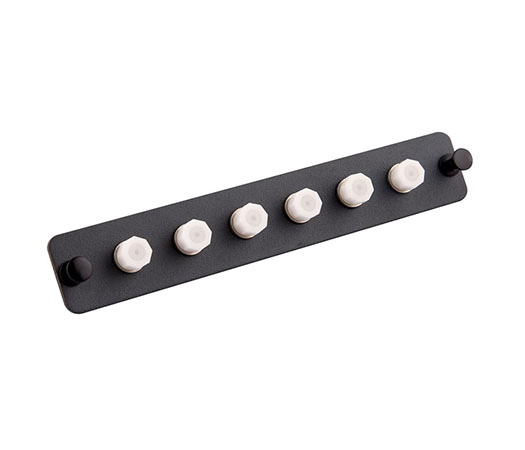

  • FC-12-SX
    FC-12-SX
  • FC-06-SX
    FC-06-SX

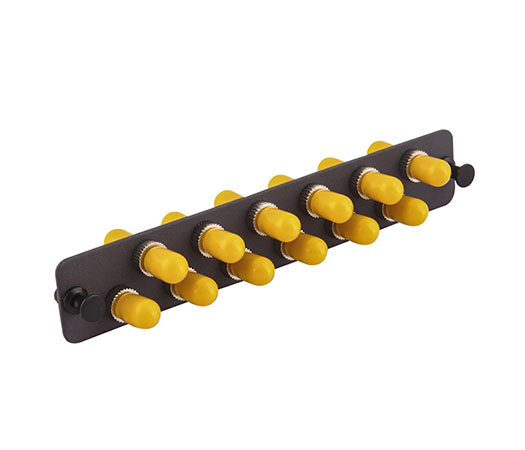

  • ST-12-SX

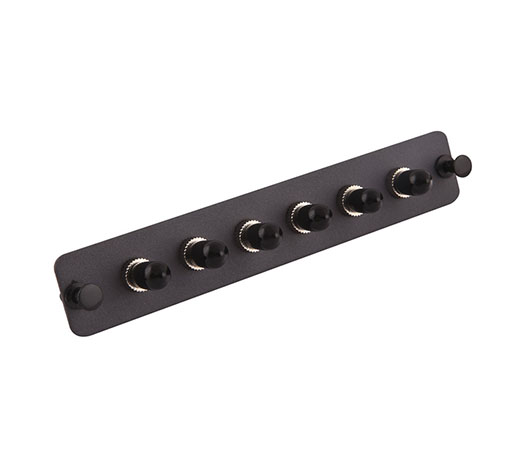

    ST-12-SX
  • ST-06-SX
    ST-06-SX


Standards Compliance

. TIA/EIA 568.C, ISO/IEC 11801, ENS50173, IEC60304, IEC61754, EN297-1
. CEA/EIA-310-E (Cabinets, Racks, Panels and Associated Equipment standard.)
. ANSI/TIA/EIA-606-A (Administration Standard for Telecommunications Infrastructure. )
. GR-449-CORE (Generic Requirements and Design Consideration for Fiber Distributing Frames. )
. UL 94 (Tests for Flammability of Plastic Material for Parts in Devices and Appliances. )
. RoHS (Directive on Restriction of Hazardous Substances. )

Features
. Easy access with Telescopic rail pull-out system.
. Providing protective connections for optical fibers and distribution pigtails.
. Insulating fiber metal components from fiber-end shells and conveniently leading out grounding wires.
. Providing spaces for placing fiber terminals and redundant fibers, thus making installation more convenient.
. 6-port or 12-port long adapter plate, FC, SC, ST, LC connector are applied.

Specifications

Patch PanelAdaptor
Size（H×W×D ）mm1U(H) x 19”(W) x 300mm(D)
2U(H) x 19”(W) x 300mm(D)		Multimode Insertion Loss 0.2dB Maximum
Material 1.2mm Cold Rolled Steel Singlemode Insertion Loss 0.2dB Maximum
Material CoatingPowderMating durability>500 Mating Cycles
Humidity0-90%, non-condensingMultimode Adaptor Wavelength 850 to 1300nm
Operating Temperature-10°C to 60°CSinglemode Adaptor Wavelength 1310 to 1550nm
Storage Temperature-40°C to 85°CROHS Compliant Yes

Ordering Information
Using the available configurations amend/create product codes using the formula below.
Part Number： XX-AA-BBC(DEF)

Ordering Guide

XXpatch panel TypeWPP=wall mount patch panel, RPP=rack mount patch panel
AAProduct IDAP1=1U， AP2=2U
BBPort Capacity012=12 Ports, 018=18 Ports, 024=24 Ports, 036=36 Ports
CconfigurationE=only patch pane, L=With Adapter Panels,
F=With Adapter Panels and Pigtails
DConnector TypeFP,SP,SA,LP
EFiber TypeOM1=62.5/125 OM1, OM2=50/125 OM2, OM3=50/125 OM3,
OM4=50/125 OM4, G652D=9/125 G652D, G657A=9/125 G657A
FFiber Length05=0.5M, 10=1M, 20=2M


Connector Type Code

CodeConnector CodeConnector CodeConnector CodeConnector
FPFC/PCFAFC/APCLPLC/PCLALC/APC
SPSC/PCSASC/APCTPST/PCTAST/APC
MUMUDNDINMTMTRJE2E2000


Ordering Sample

Part NumberDescription
RPP-AP1-E1U RPP-AP Type Rack Mount Patch Panel without adaptor plate and pigtail.
RPP-AP2-E2U RPP-AP Type Rack Mount Patch Panel without adaptor plate and pigtail.
RPP-AP1-24FSPG652D101U 24 Fibers RPP-AP Type Rack Mount Patch Panel With Duplex
SC/PC SM Adapter and 1M Singlemode G652D SC/PC Pigtail.
