| Distribution Tight Buffer IN/OUT Optical Cable | |||||||||
|
|||||||||
Complied with or Exceeds Standard
IEC 60793-2-10 type A1b, TIA/EIA-492AAAA-A IEC 60793-2-10 type A1a.1, TIA/EIA-492AAAB-A.
IEC 60793-2-10 type A1a.2, ISO/IEC 11801 OM-3, TIA/EIA-492AAAC IEEE 802.3z Gigabit Ethernet
IEC 60793-2-10 type A1a.3, ISO/IEC 11801 OM-4, TIA/EIA-492AAAD. IEEE 802.3ae 10 Gigabit Ethernet
IEC 60793-2-10 type Ala.4, ISO/IEC 11801 OM5, TIA/ElA-492AAAE. IEEE 802.3ba 40&100 Gigabit Ethernet
ITU-T Recommendation G.652.D/G.655/G.657.A1/G.657.A2/G.657.B2/G.657.B3
IEC 60793-2-50 type B1.3/B6.a1/B6.a2/B6.b2/ B6.b3 Optical Fiber Specification.
ANSI/TIA/EIA 568C.3 ROHS Compliant Directive 2011/65/EU(ROHS2.0)

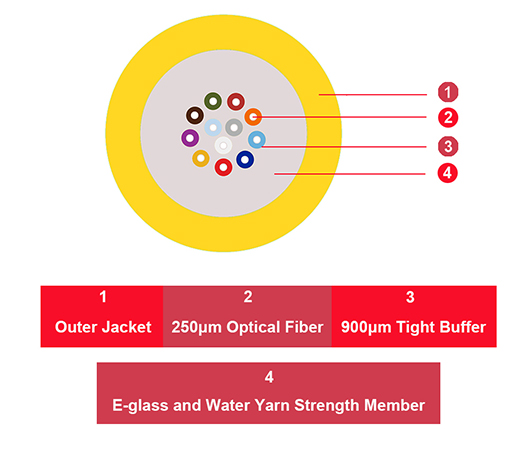

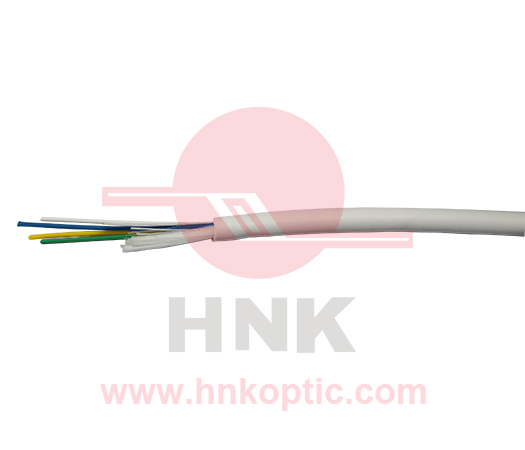

The cable combines robust characteristics of outdoor cable and flexibility of indoor cable. It has Soft, flexible, water blocked, UV resistant, small diameter, light weight and thick wall jacket protection, giving it versatile applications. The non-metallic construction (dielectric) prevents electromagnetic interference and enables application in power lines side by side with energy cables. Universal cable for installation in ducts, tunnels, trunking, under floor or ceiling spaces.
Mechanical & Environmental Characteristics
Max. Tensile Load (Short Term) | 660N | Max. Tensile Load (Long Term) | 200N |
Max. Crush Load (Short Term) | 1000N/100mm | Max. Crush Load (Long Term) | 300N/100mm |
Bend Radius-Dynamic (mm) | 20D | Bend Radius-Static (mm) | 10D |
UL Fire Rated | OFNR | Tight Buffer Jacket Material | LSZH or PVC |
Outer Diameter (mm) | 4.8mm (4 F), 5.2mm (6 F), 6.2mm (8 F), 6.8mm (12 F) | ||
Outer Jacket Material | Standard: LSZH Optional: PU, PE, PVC or other | ||
Operating Temperature | -40°C to +70°C | Storage Temperature | -40°C to +70°C |
Note: “D” is Cable Outer Diameter.
Ordering Information
Part Number： OC-XX-A(B)CDCL
Ordering Guide
XX | A | B | C | D | CL |
Cable Type Code | Jacket | Fiber/Per Loose Tube or Fiber/Per Sub Unit | Fiber Count | Fiber Type | Jacket Color(CL) |
GJYPFJH | 1=PVC 2=LSZH 3=PE 4=PU | 2=2 Fibers/Loose Tube 12=12 Fibers/Loose Tube …… 2=2 Fibers/Sub Unit 12=12 Fibers/Sub Unit | No. Of Fiber 004F, 048F | OM1=62.5/125 OM1, OM2=50/125 OM2 OM3=50/125 OM3, OM4=50/125 OM4 OM5=50/125 OM5, G652D=9/125 G652D G655=9/125 G655, G657A1=9/125 G657A1 G657A2=9/125 G657A2, G657B3=9/125 G657B3 | As noted in Color code chart |
Color Code
Ordering Sample
Part Number | Description |
OC-GJYPFJH-212G652DYE | 12 Cores Singlemode G652D GJYPFJH Fiber Optic Cable, LSZH Jacket, Yellow Color. |
|
