　 Fiber Optic Cleaner Series
Model:CLE-Pen

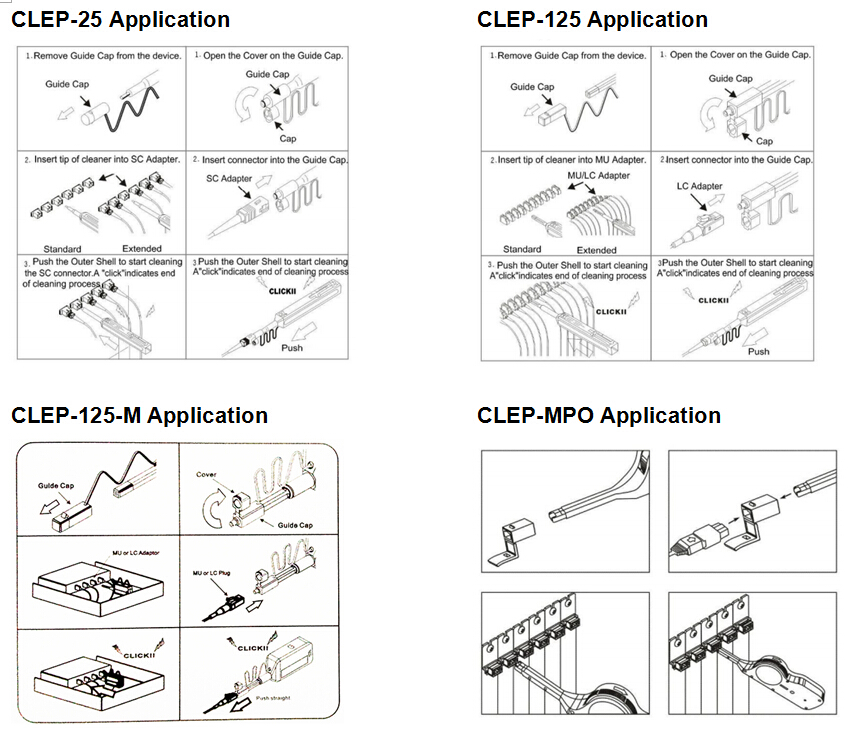

Todays network applications require more bandwidth, making loss budgets tighter than ever. It is critical that all optical connections are clean and free of contaminants to ensure application success. Fiber Optic Cleaner Pen is designed to specially work well with the female connectors, this instrument cleans the ferrule end faces removing dust,oil, and other debris without nicking or scratching the end face. Our offers different size interface of cleaner pens are used for FC, SC, ST, LC, MU connectors. As with all cleaners, it uses the innovative push-to-clean design. The mechanical push action advances the optical grade cleaning tape while effectively and gently cleaning the end-face of the connector.



  • CLE-Pen-1
    CLE-Pen-1
  • CLE-Pen-2
    CLE-Pen-2
  • CLE-Pen-3
    CLE-Pen-3
  • CLE-Pen-4
    CLE-Pen-4
  • CLE-Pen-5
    CLE-Pen-5
  • CLE-Pen-6
    CLE-Pen-6


Standards Compliance
▪ IEC 62627: Fiber optic interconnecting devices and passive components – Fiber optic connector cleaning methods
▪ RoHS：Free of hazardous substances according to RoHS 2002/95/EG
▪ IEC 61300-3-35, which specifies pass/fail requirements for end face quality inspection before connection.

Features
▪ Low cost per clean
▪ Effective on a variety of contaminates including dust and oils
▪ Automatic advance ensures each clean is performed with fresh cleaning tape
▪ Cleans connectors on jumpers and in adaptors
▪ Ergonomic, comfortable design with single action cleaning


▪ FC/SC/ST Cleaner Pen, universal 2.5mm;
▪ LC/MU Cleaner Pen, universal 1.25mm.




Ordering Information

Part NumberDimensionsWeightDescription
CLEP-25185*25*25 mm0.044kgFiber Optic Cleaner Pen, Used For SC, ST, FC (800+ cleans).
CLEP-125185*25*25 mm0.044kgFiber Optic Cleaner Pen, Used For MU/LC (800+ cleans).
CLEP-25-M110*30*18 mm0.035kgFiber Optic Mini Cleaner Pen, Used For SC, ST, FC (800+ cleans).
CLEP-125-M110*30*18 mm0.035kgFiber Optic Mini Cleaner Pen, Used For MU/LC (800+ cleans).
CLEP-25-D225*66*30 mm0.065kgFiber Optic Huge Cleaner Pen, Used For SC, ST, FC (800~3000 cleans).
CLEP-125-D225*66*30 mm0.065kgFiber Optic Huge Cleaner Pen, Used For MU/LC (800~3000 cleans).
CLEP-MPO225*65*30 mm0.065kgFiber Optic Cleaner Pen, Used For MPO (MPO/MTP, 500+ cleans).
