| Adapter Type PLC Splitter Module | |||||||||
|
|||||||||
Standard Compliance
▪ Telcordia GR-1221-CORE-1999 & GR-1209-CORE-2001
▪ TIA/EIA-568B.3 Fiber Optic Cabling Components Standard
▪ IEE802.3z Standards for Fiber Optic Cabling
▪ RoHS Certified for European Market Requirements
Features

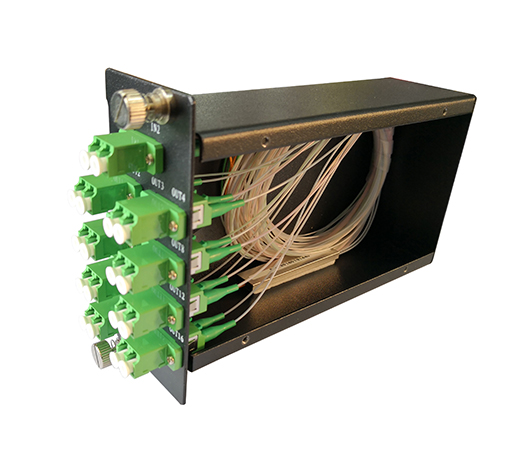

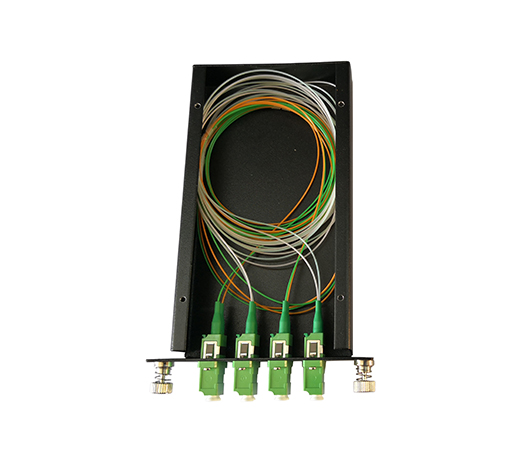

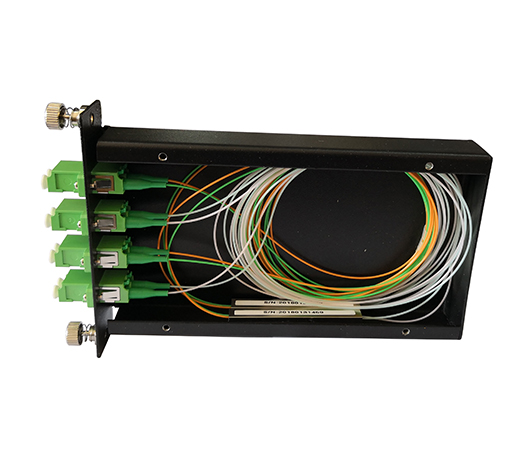

▪ The whole body of micro type PLC splitter is housed in a compact metal box which great bend radius control and cable protection.
▪ LC fiber adapters are pre-terminated at the front of box for fast and reliable connecting with outside equipment.
▪ Module fixing assembly adopt screw combination fasteners, install more firmly.
▪ Port labeling and serial numbered, easy installation and maintenance.
▪ Module can be mounted in multi slot splitter module patch panel with 1U or 3U spaces.

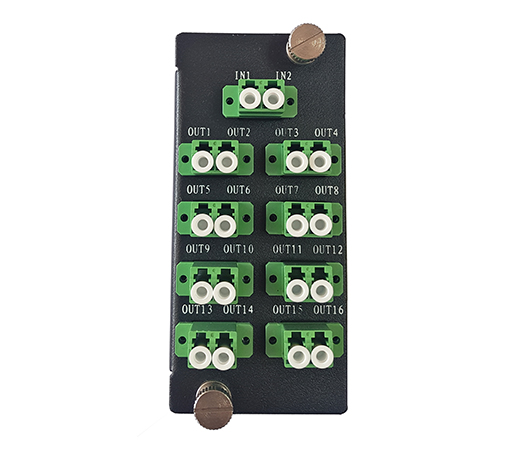

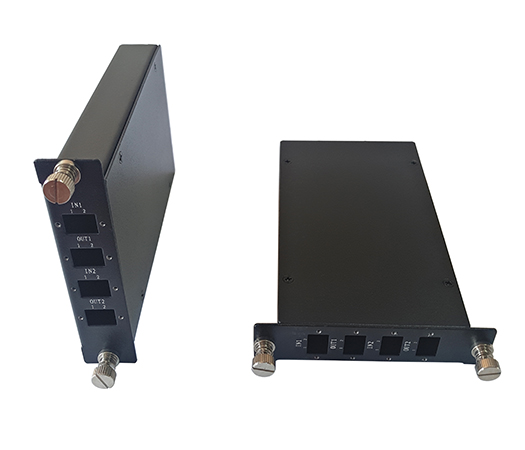

▪ The 2 × 2 module occupy one panel slot, the 2 × 16 two panel slots.
Specifications
Operating Temperature | -40°C～+85°C | Storage Temperature | -40°C～+85°C |
Box Material | 1.2mm Cold Rolled Steel | Material Coating | Powder |
Color of Metal Box | Black | Adapter | LC-LC(Duplex) |
PLC Splitter Ratios | 2 x 2, 2 x 16 | PLC Splitter Type | Micro Type |
2 × 2 Module Size (W×H×D) | 25 x 110 x 160mm | 2 × 16 Module Size (W×H×D) | 55.5 x 110 x 160mm |
PLC Splitter Mode | Singlemode | PLC Splitter Connector | LC/PC or LC/APC |
|
