Standards Compliance
. TIA/EIA 568.C (Optical Fiber Cabling Components Standard).
. ISO/IEC 11801(Generic cabling for customer premises).
. IEC 61073-1, Mechanical splices and fusion splice protectors for optical fibers and cables .
. EN50173( Telecommunications Infrastructure Standard for Data Centres).
. 2011/65/EU(ROHS2.0, Directive on Restriction of Hazardous Substances.).

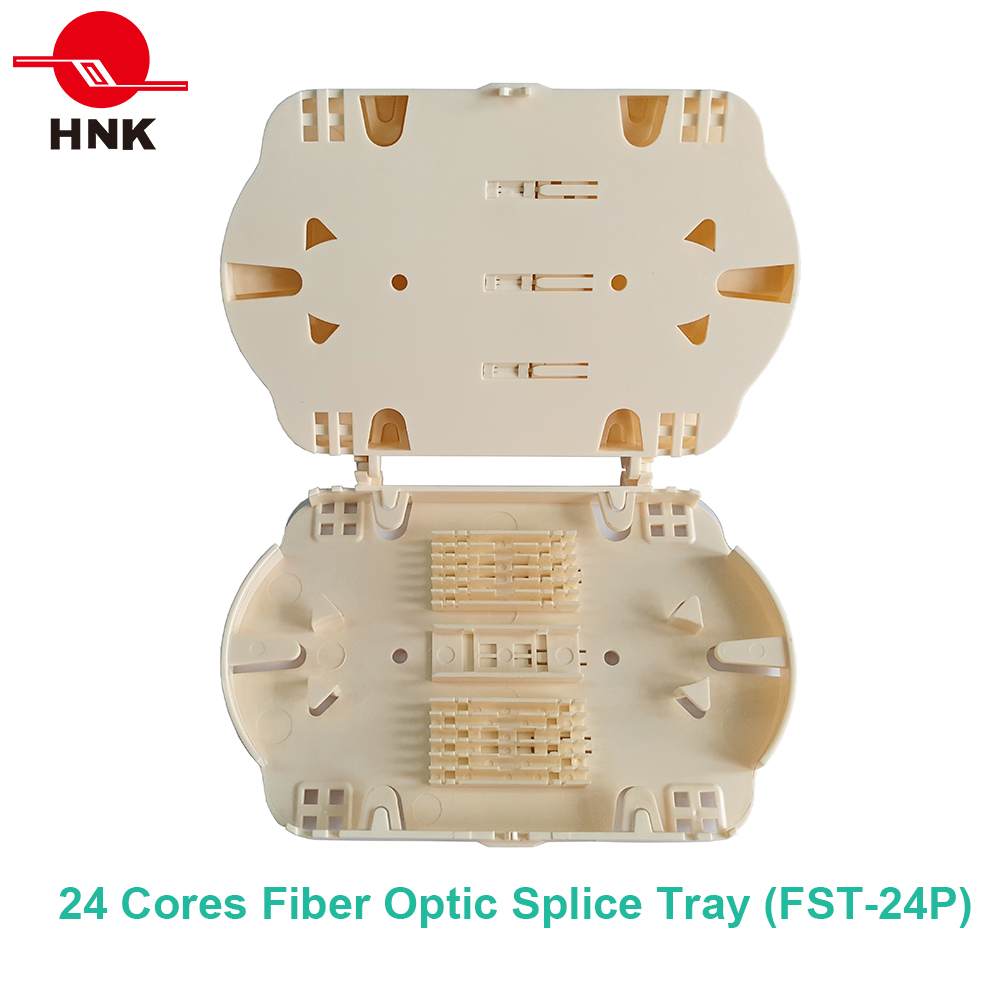

Features
. Center holes for mounting of the tray.
. Multiple tie down holes for securing incoming fiber.
. Designed for swing-up, installed 1 by 1.
. Removable splice holders module, min PLC splitter holders module.
. Storage and protect splice fibers, reach up to max 24 fibers.
. Scientific design with large bent radius, simple to install and operate.
. Durable ABS material used for long time; repeatable operation.
. Accommodate standard heat shrink sleeves in 40~60mm lengths with 2.5 mm diameter.
. Installable in wall mount & slidable patch panel & splice closures
