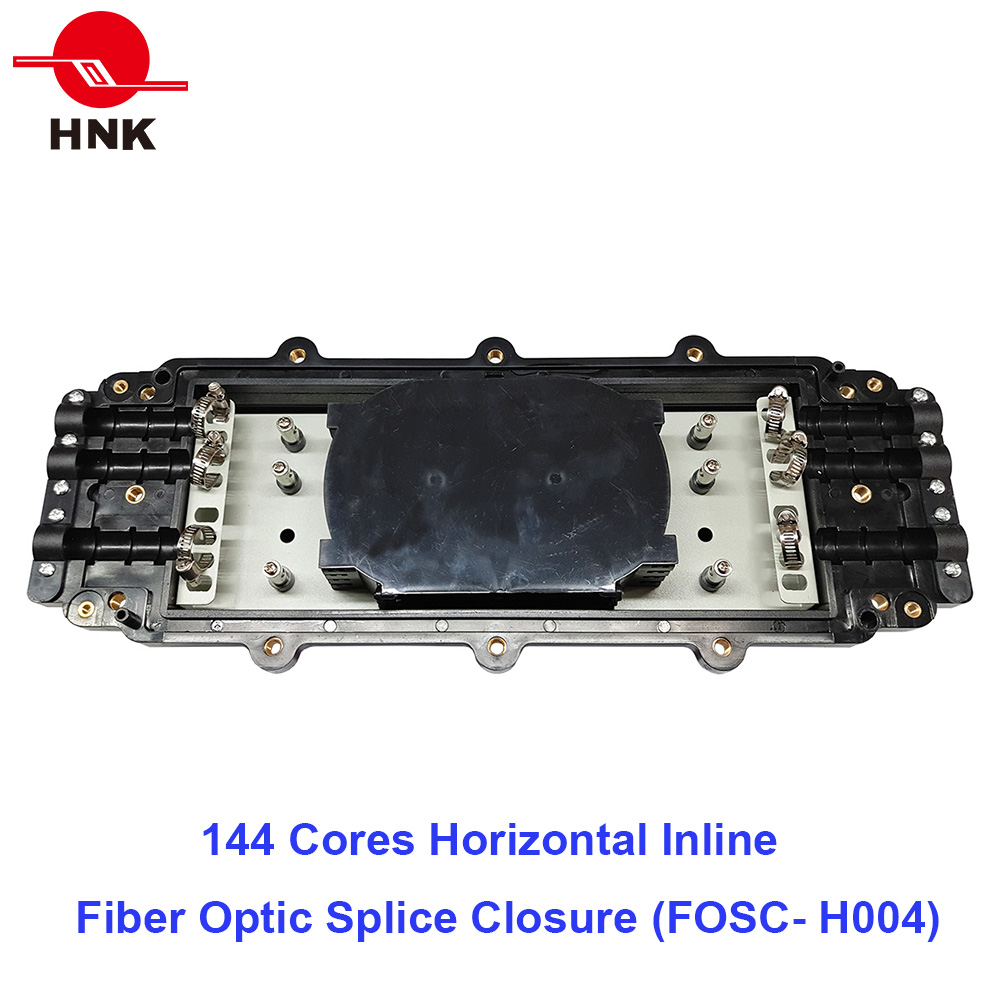

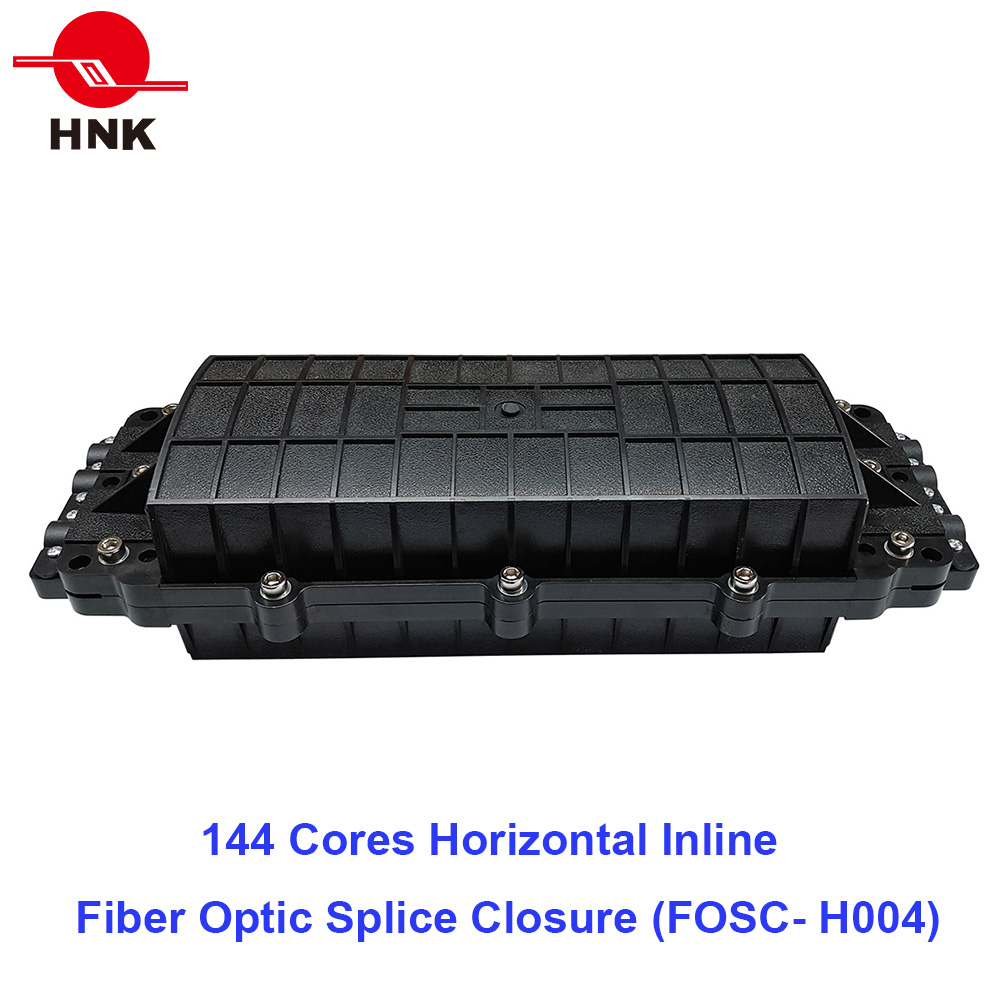

| 144 Cores Horizontal Inline Fiber Optic Splice Closure | |||||||||
|
|||||||||
. YD/T814.1-2004,
. YD/T814.2-2005
. ITU L.13-2003,
. IEC1073-1：1994
Features
. To adopt high-quality ABS make the closure has longer life time.
. The case body and cable entrance are sealed with adhesive rubber strip(non-vulcanized) and insulation tape.
. The external component and fastening piece are all made of the high-quality stainless steel.
. The sealing structure keep good sealing performance after re-entry and re-using.
. The closure is spacious enough for winding and storing fibers.
. Unique configuration of the plug to cover unused inlets.

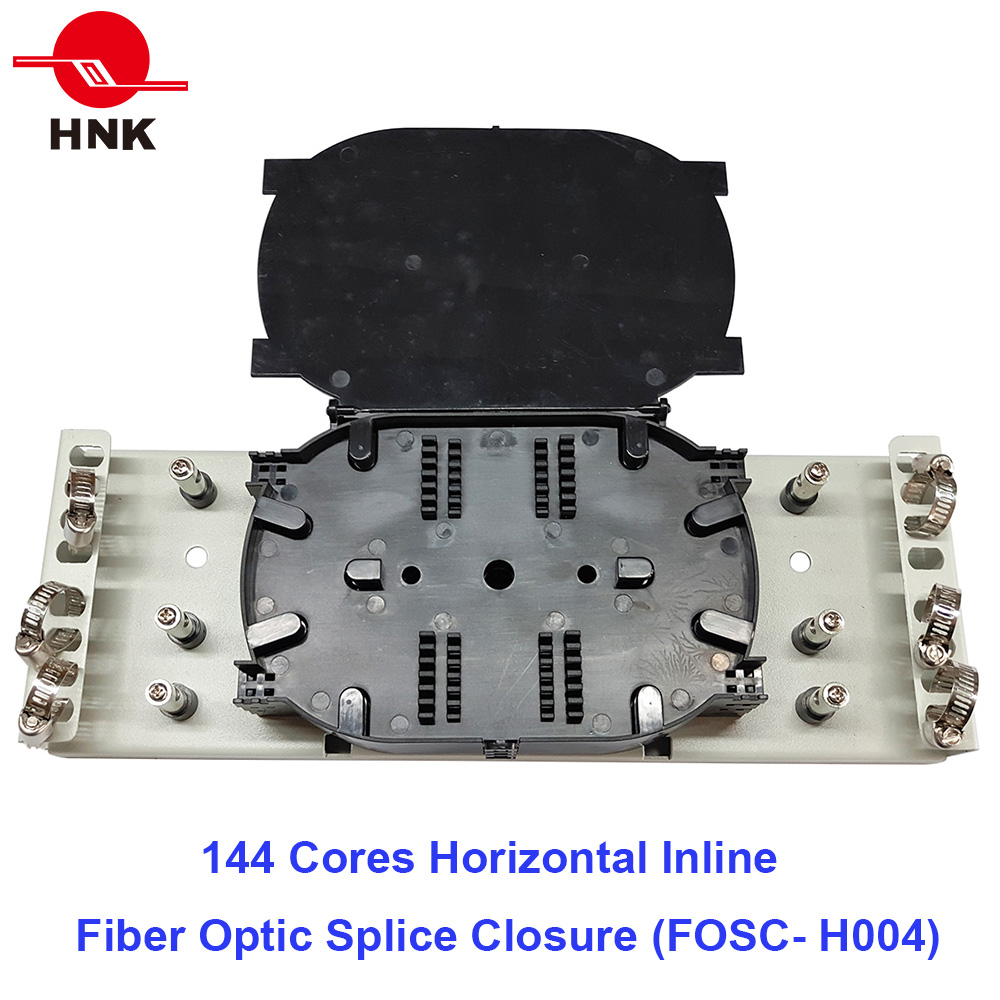

. Splice trays are easy to insert and remove, can accommodate 6 splice trays.
Specifications
Working Temperature | -25～+60°C | Storage Temperature | -40～+70°C |
Humidity | 93%(+30°C) | Air Pressure | 70KPa～106KPa |
Size (L×W×H) mm | 465*180*120 | Weight (kg) | 2.8 |
Color | Black | Material | ABS (ROHS standard) |
Max. Capacity (Per Tray) | 24 Fibers | Max. Capacity of Splice Trays | 6 |
Max. Capacity (Cores) | 144 | Cables Entry & Exit | 6 Ports |
Suitable for Cable Diameter | Φ7-Φ15mm | Curvature Radius (mm) | ≥30 |
Protective Level | IP65 | Sealing Method | adhesive rubber strip and insulation tape |
|
