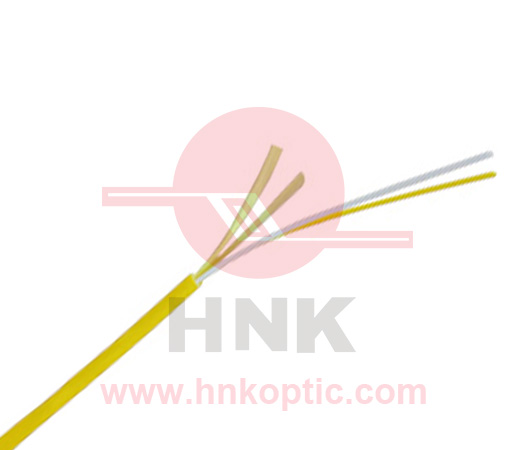

| Single Tube Duplex Fiber Optic Cable | |||||||||
|
|||||||||

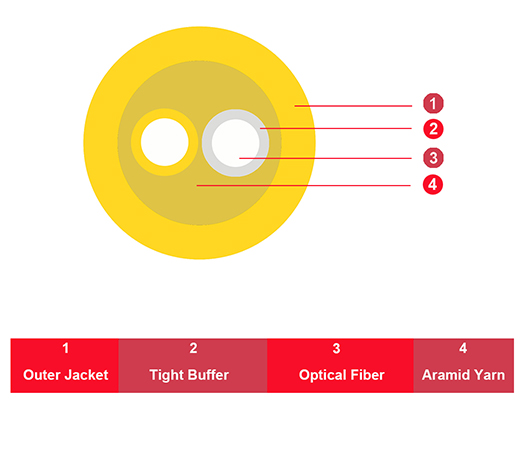

Complied with or Exceeds Standard
IEC 60793-2-10 type A1b, TIA/EIA-492AAAA-A IEC 60793-2-10 type A1a.1, TIA/EIA-492AAAB-A.
IEC 60793-2-10 type A1a.2, ISO/IEC 11801 OM-3, TIA/EIA-492AAAC IEEE 802.3z Gigabit Ethernet
IEC 60793-2-10 type A1a.3, ISO/IEC 11801 OM-4, TIA/EIA-492AAAD. IEEE 802.3ae 10 Gigabit Ethernet
IEC 60793-2-10 type Ala.4, ISO/IEC 11801 OM5, TIA/ElA-492AAAE. IEEE 802.3ba 40&100 Gigabit Ethernet
ITU-T Recommendation G.652.D/G.655/G.657.A1/G.657.A2/G.657.B2/G.657.B3
IEC 60793-2-50 type B1.3/B6.a1/B6.a2/B6.b2/ B6.b3 Optical Fiber Specification.
ANSI/TIA/EIA 568C.3 ROHS Compliant Directive 2011/65/EU(ROHS2.0)
Utilizing 550µm buffered fiber, the cable unit is suitable for use with industry standard connectors and can be easily made into a patch cord. Ideal for use in office LAN connections, patch cords, pigtails and internal point-to-point links where frequent handling is likely (e.g. data cabinets, equipment rooms, user outlets).
Mechanical & Environmental Characteristics
Min. Tensile Load (Short Term) | 100N | Min. Tensile Load (Long Term) | 60N |
Min. Crush Load (Short Term) | 500N/100mm | Min. Crush Load (Long Term) | 100N/100mm |
Bend Radius-Dynamic (mm) | 60 | Bend Radius-Static (mm) | 30 |
UL Fire Rated | OFNR | Tight Buffer Jacket Material | PVC or LSZH |
Outer Diameter (mm) | 2.0mm | ||
Outer Jacket Material | Standard: PVC Optional: LSZH or other | ||
Operating Temperature | -20°C to +60°C | Storage Temperature | -20°C to +60°C |
Ordering Information
Part Number： OC-XX-A(B)CDCL
Ordering Guide
XX | A | B | C | D | CL |
Cable Type Code | Jacket | Fiber/Per Loose Tube or Fiber/Per Sub Unit | Fiber Count | Fiber Type | Jacket Color(CL) |
GYCFTY | 1=PVC 2=LSZH 3=PE | 2=2 Fibers/Loose Tube 12=12 Fibers/Loose Tube …… 2=2 Fibers/Sub Unit 12=12 Fibers/Sub Unit | No. Of Fiber 004F, 048F | OM1=62.5/125 OM1, OM2=50/125 OM2 OM3=50/125 OM3, OM4=50/125 OM4 OM5=50/125 OM5, G652D=9/125 G652D G655=9/125 G655, G657A1=9/125 G657A1 G657A2=9/125 G657A2, G657B3=9/125 G657B3 | As noted in Color code chart |
Color Code
Ordering Sample
Part Number | Description |
OC-GJFJV-12G657A1YE | 2 Cores Singlemode G657A1 GJFJV Fiber Optic Cable, PVC Jacket, Yellow Color. |
|
