| Bundle Fan-out Fiber Optic Patch Cord /Pigtail | |||||||||
|
|||||||||
Standards Compliance
. Telcordia (formerly Bellcore) GR-326-CORE Generic requirements for Single mode optical connectors and Jumper assemblies.
. IEC 874-1 Generic specification for fiber optic connectors and cables
. ANSI/TIA-568-C.3, ISO/IEC 11801 2nd Ed., CENELEC EN 50173, UL94V-0
. Cable flame resistant rate: OFNR or IEC60332-3 standard
Features
. 100% tested on optical performance (Insertion Loss & Return Loss).
. Standard color is Yellow, Orange or Aqua, other colors available upon request.
. Cable outer jacket available in PVC, Low Smoke Zero Halogen (LSZH).
. PC, UPC, APC connectors type available.
. Various kinds of connect interfaces optional such as LC, SC, FC, ST, MTRJ, MU, E2000, etc.
. Available in G652D, G657A, OM1, OM2, OM3 and OM4.
. Each buffered fiber is color coded for easy identification.

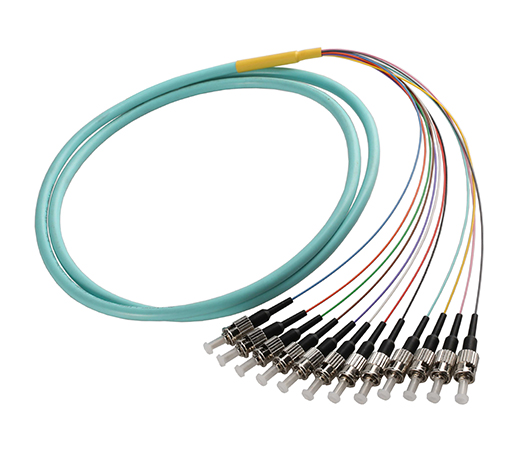

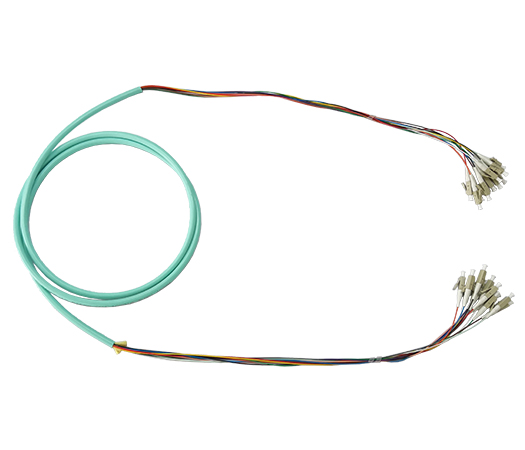

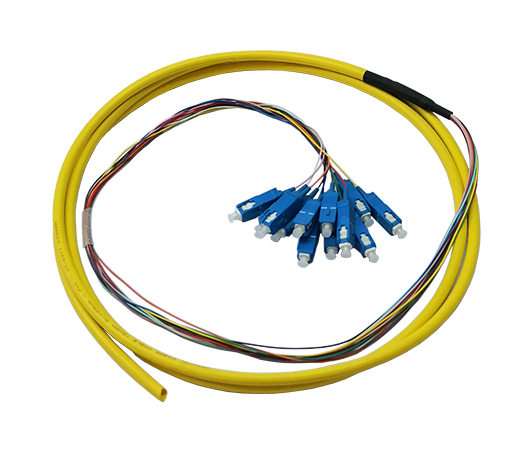

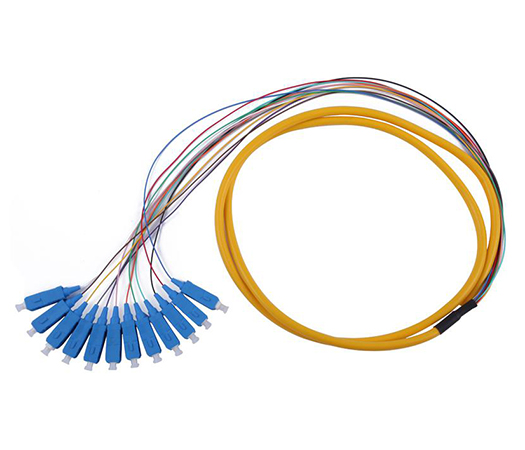

. Can be in pigtail version or patch cord version, customer specified length.
Specification
Fiber Type | OS2, OM1, OM2, OM3, OM4 | Fiber Count | 4, 6, 8, 12 |

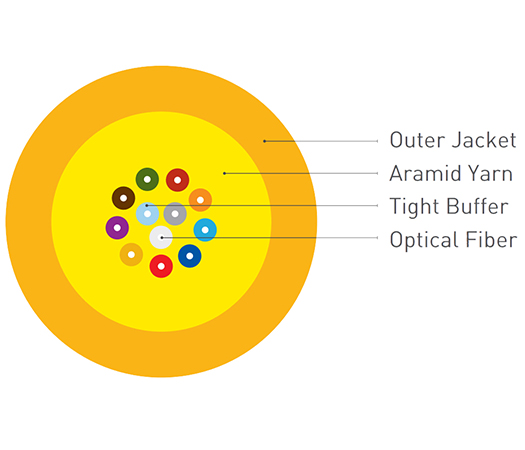

Cable Type | Distribution Tight Buffer Optical Cable | Fan-out tubing diameter | 0.9mm |
Connector | SC, LC, ST, FC, MU, E2000, DIN, D4 | Jacket Type | PVC, LSZH |
Operating temperature | -40°C to +85°C | Storage temperature | -40°C to +85°C |
Optical Performance Data
Item | Single mode | Multimode | ||||
PC | UPC | APC | 62.5/125 | 50/125 | 50/125 10G | |
Insert Loss/connector (single Fiber) | 0.2dB Max. (0.15dB typ.) | 0.3dB Max. (0.25dB typ.) | ||||
Return Loss | ≥45 dB | ≥50 dB | ≥60 dB | N.A | ||
Pull Strength | ≥98N | ≥98N | ||||
Optical Characteristics
Fiber Type | Max. Attenuation(dB/km) | Min.Overfill Launch Bandwidth (Mhz.km) | Min.Gigabit Ethernet Link Distance (m) | ||||||
Gigabit | 10Gigabit | ||||||||
850nm | 1300nm | 1310nm | 1550nm | 850nm | 1300nm | 850nm | 1300nm | 850nnm | |
OM1 62.5/125µm | ≤2.7 | ≤0.6 | - | - | ≥500 | ≥600 | 275 | 550 | - |
OM2 50/125µm | ≤2.3 | ≤0.6 | - | - | ≥500 | ≥500 | 750 | 600 | 150 |
OM3 50/125µm | ≤2.3 | ≤0.6 | - | - | ≥1500 | ≥500 | 1000 | 600 | 300 |
OM4 50/125µm | ≤2.3 | ≤0.6 | - | - | ≥3500 | ≥500 | 1100 | 600 | 550 |
G652D 9/125µm | - | - | ≤0.30 | ≤0.18 | - | - | - | - | - |
G657A 9/125µm | - | - | ≤0.35 | ≤0.21 | - | - | - | - | - |
Ordering Information
Using the available configurations amend/create product codes using the formula below.
Patch Cord Part Number： BFPC-AA-BB-CDEFGCL Pigtail Part Number： BFPT- AA- CDEFGCL
Ordering Guide
AA | BB | C | D |
Connector Type | Connector Type | Fiber Type | Fiber Count |
FP, SP, SA, LP | FP, SP, SA, LP | OM1=62.5/125 OM1 OM2=50/125 OM2 OM3=50/125 OM3 OM4=50/125 OM4 G652D=9/125 G652D G657A=9/125 G657A | 4F=4 cores 6F=6 cores 12F=12 cores |
E | F | G | CL |
Fanout Cable Length | Total Length | Jacket Materia | Jacket Color (CL) |
05=0.5M 10=1M 15=1.5M | 0015=1.5M 0200=20M | 1=PVC 2=LSZH 3=PE | As noted in Color code chart |
Connector Type Code
Code | Connector | Code | Connector | Code | Connector | Code | Connector |
FP | FC/PC | FA | FC/APC | LP | LC/PC | LA | LC/APC |
SP | SC/PC | SA | SC/APC | TP | ST/PC | TA | ST/APC |
Color Code
Note:Yellow Jacket for SM, Orange Jacket for OM1~OM2, Aqua Jacket for OM3 and Purple Jacket for OM4.
(other colors may be available upon request).
Ordering Sample
Part Number | Description |
BFPC-LP-LP-OM312F0502002AQ | LC/PC-LC/PC Bundle Fan-out Fiber Optic Patch Cord, Multimode 50/125 OM3, 12 Cores, LSZH, Aqua, Fanout Cable Length 0.5M, Total Length 20M. |
BFPT-SP-G652D12F1001001YE | 12 Cores SC/PC Singlemode G652D Bundle Fan-out Fiber Optic Pigtail, Fanout Cable Length 1M, Total Length 10M, PVC Jacket, Yellow. |
|
