| Splitter Module Rack Mount Patch Panel | |||||||||
|
|||||||||
Standard Compliance
▪ Telcordia GR-1221-CORE-1999 & GR-1209-CORE-2001
▪ TIA/EIA-568B.3 Fiber Optic Cabling Components Standard
▪ IEE802.3z Standards for Fiber Optic Cabling
▪ RoHS Certified for European Market Requirements
Features
• Standard 19” strong & robust cold-rolled steel frame.
• Modular structure, easy for operation, construction and maintenance.

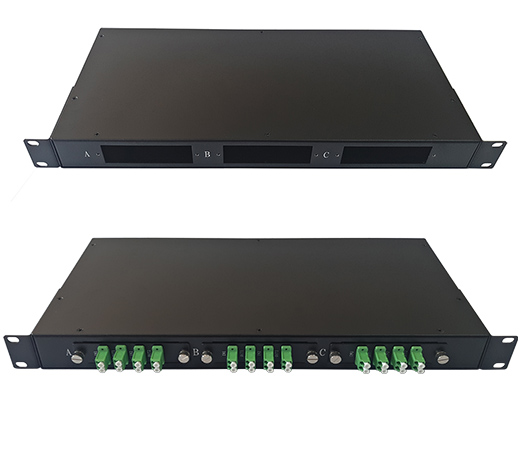

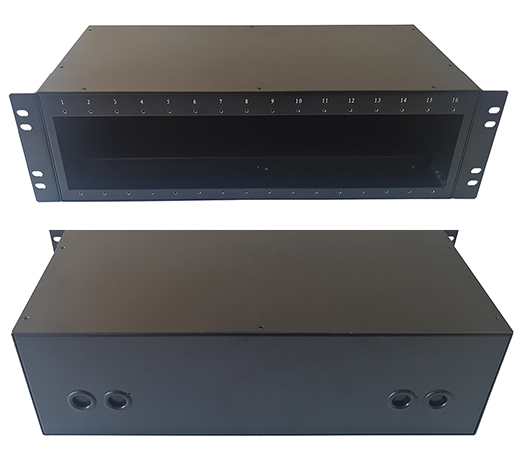

• Up to 3 modules slots in 1U height, 16 modules slots in 3U height.
• Adapter type or cordage type PLC splitter module available.

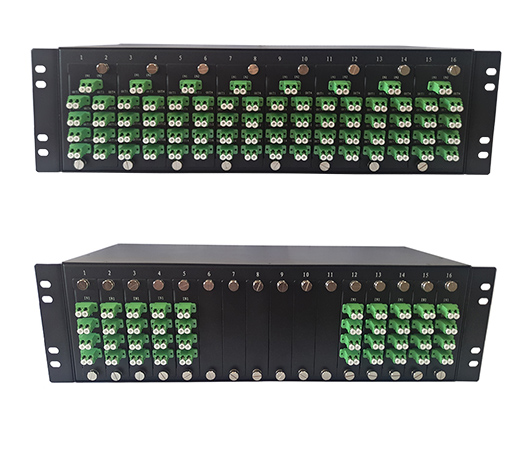

• 3U rack mount patch panel to hold 8 pieces of 2*16 adapter type PLC splitter modules.
• Module fixing assembly adopt screw combination fasteners, install more firmly.
• Individually labeled ports.
• Blank panel to cover unused module holes.
Specifications
Operating Temperature | -40°C～+85°C | Storage Temperature | -40°C～+85°C |
Chassis Material | 1.2mm Cold Rolled Steel | Humidity | 0-90%, non-condensing |
Material Coating | Powder | Color of Metal Chassis | Black |
Size（H×W×D ）mm | 1U(H) x 19”(W) x 200mm(D), 3U(H) x 19”(W) x 200mm(D) | ||
|
