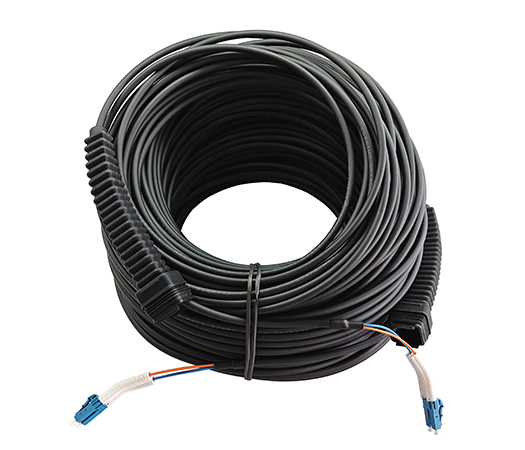

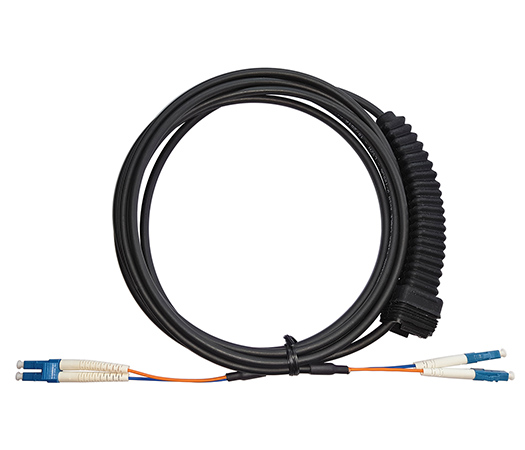

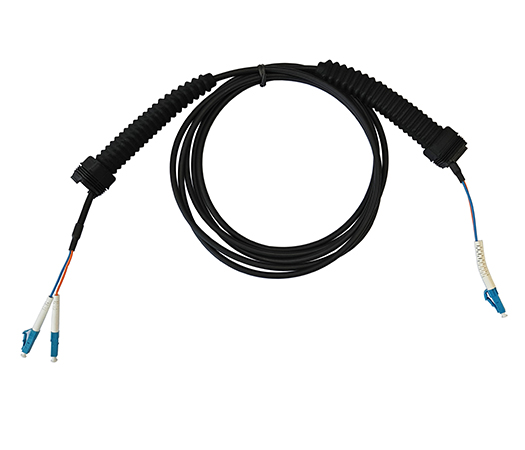

| NSN FTTA (Fiber to The Antenna) Duplex Outdoor Branch Patch Cord | |||||||||
|
|||||||||
Complied with or Exceeds Standard
. Telcordia GR-326-CORE generic requirements for single mode optical connectors and jumper assemblies.
. IEC 874-1 generic specification for fiber optic connectors and cables
. Comprehensive wiring standard: ANSI/TIA-568-C.3, ISO/IEC 11801 2nd Ed., CENELEC EN 50173,
. Cable flame resistant rate: OFNR or IEC60332-3 standard
. RoHS compliant directive 2011/65/EU
Features
. The cable is soft, flexible, convenient laying.
. Suitable for riser, duct, horizontal and vertical cabling.
. Thick wall outer jacket and e-glass gives more excellent tensile strength, mechanical, rodent, ultraviolet and environmental protection.
. Available in G652D, G657A1, G657A2, OM1, OM2, OM3 and OM4 fiber types.
. Patch cord will be produced to different kind of connectors and different length according to the construction need.

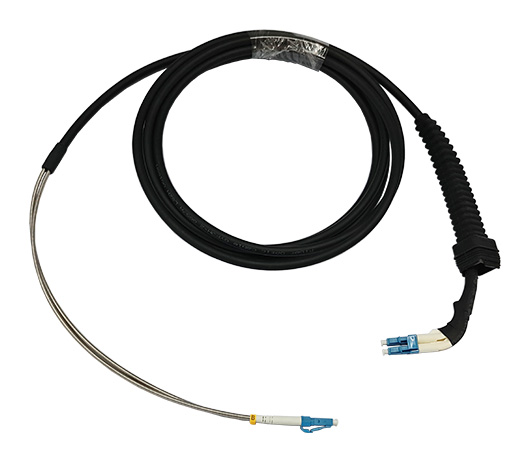

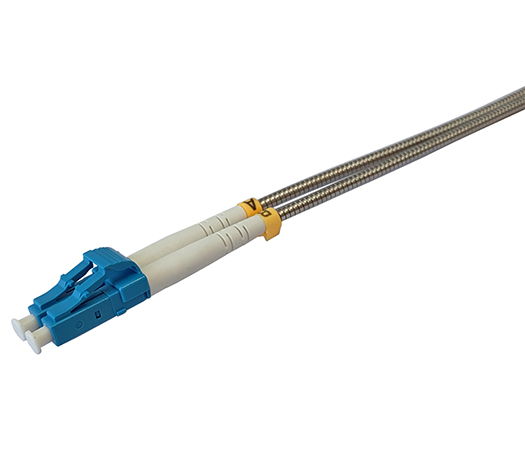

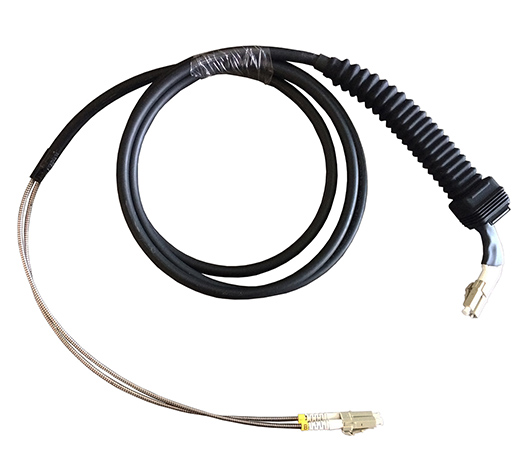

. Optional high tensile strength armoured tube for protecting Φ1.6/Φ2.0mm branch cable, custom lengths.

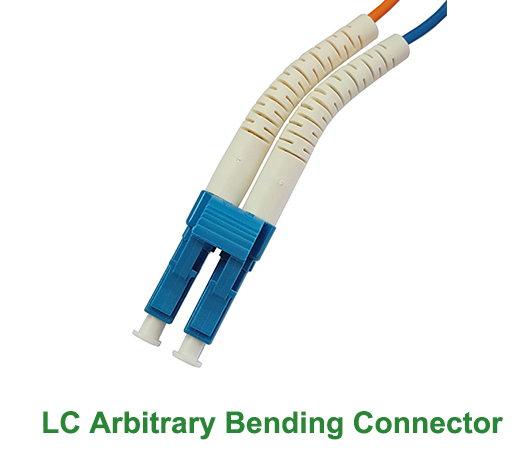

. Optional LC 90 degree connector or LC arbitrary bending connector.
. 5.0mm or 7.0mm cable diameter (available upon request).

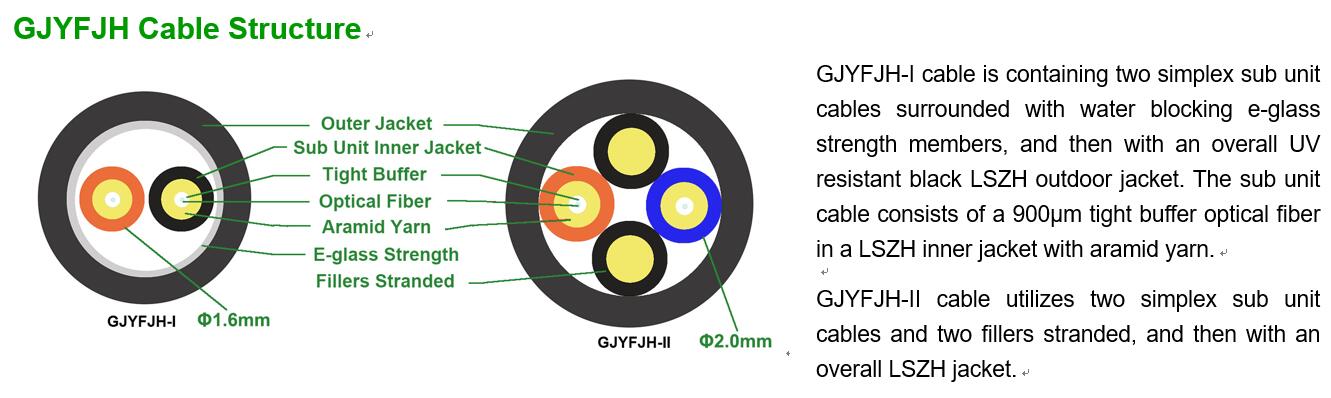

Mechanical, Environmental & Material Data
Items | Specifications | Items | Specifications |
Fiber Type | Singlemode or Multimode | Connector Style | SC, FC, ST, LC |
Polish or Ferrule Interface Type | PC, UPC, APC | Cable Lengths | Custom Lengths |
Fiber Count | 2 | Branch Cable Lengths | Custom Lengths |
Cable Parameter | |||
Outer Jacket Material | LSZH | Outer Jacket Color | Black |
Strength Member | E-glass, Aramid Yarn | Outer Jacket Diameter (mm) | 7.0±0.1 (or 5.0±0.1) |
Min. Crush (Long term) | 500 N/100mm | Min. Crush (Short term) | 1000 N/100mm |
Min. Tensile Load (Long Term) | 200N | Min. Tensile Load (Short Term) | 400N |
Min. Bend Radius (Static) mm | 10D | Min Bend Radius (Dynamic) mm | 20D |
Sub-unit Parameter | |||
Sub-unit Color | Orange, Black, Blue | Sub-unit Material | LSZH |
Sub-unit Diameter(mm) | 2.0±0.1(or 1.6±0.1) | Strength Member | Aramid yarn |
Operating Temperature(°C) | -40°C to 70°C | Storage Temperature(°C) | -40°C to 70°C |
Optical Performance Data
Item | Single mode | Multimode | ||||
PC | UPC | APC | 62.5/125 | 50/125 | 50/125 10G | |
Insert Loss/connector (single Fiber) | 0.2dB Max. (0.15dB typ.) | 0.3dB Max. (0.25dB typ.) | ||||
Return Loss | ≥45 dB | ≥50 dB | ≥60 dB | N.A | ||
Pull Strength | ≥98N | ≥98N | ||||
Ordering Information
Using the available configurations amend/create product codes using the formula below.
Part Number： NSN-PC-AA-BB-CDE
Ordering Guide
AA | BB | C | D | E |
Connector Type | Connector Type | Fiber Type | Cable Length | Branch Cable Length |
FP, SP, SA, LP | FP, SP, SA, LP | OM1=62.5/125 OM1, OM2=50/125 OM2 OM3=50/125 OM3, OM4=50/125 OM4 G652D=9/125 G652D, G657A1=9/125 G657A1, G657A2=9/125 G657A2 | 003=3M 020=20M 100=100M | 02=0.2M ... 10=1M |
Connector Type Code
Code | Connector | Code | Connector | Code | Connector | Code | Connector |
FP | FC/PC | FA | FC/APC | LP | LC/PC | LA | LC/APC |
SP | SC/PC | SA | SC/APC | TP | ST/PC | TA | ST/APC |
Ordering Sample
Part Number | Description |
NSN-PC-LP-LP-G657A130005 | LC/PC-LC/PC NSN FTTA Duplex Outdoor Branch Patch Cord, Singlemode G657A1, 300M, Branch Cable 0.5M. |
|
